vlWin32::Win32Context Class Referenceabstract

The Win32Context class implements an OpenGLContext using the Win32 API. More...

#include <Win32Context.hpp>

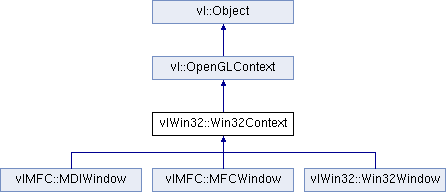

+ Inheritance diagram for vlWin32::Win32Context:

Public Member Functions

 Win32Context ()

 Win32Context (int w, int h)

 ~Win32Context ()

virtual HWND hwnd () const =0

HDC hdc () const

HGLRC hglrc () const

void shareOpenGLResources (HGLRC hGLRC)
 Use this function when you want two OpenGL contexts to share their resources (display lists, textures, shader objects, buffer objects etc.) Equivalent to wglShareLists(this->hglrc(), hGLRC) More...

void makeCurrent ()
 Sets the OpenGL context as current for the calling thread. More...

void update ()
 If the OpenGLContext is a widget this function requests a redraw and generates an updateEvent(). More...

void swapBuffers ()
 Swaps the back and front buffers to present the last rendering. More...

void setWindowTitle (const vl::String &title)
 If the OpenGL context is a top window this function sets its title. More...

void show ()
 If the OpenGL context is a widget this function makes it visible to the user. More...

void hide ()
 If the OpenGL context is a widget this function makes it invisible to the user. More...

void getFocus ()
 If the OpenGL context is a widget this function requests the mouse focus on it. More...

void setMouseVisible (bool visible)
 If the OpenGL context is a widget this function sets whether the mouse is visible over it or not. More...

void setMousePosition (int x, int y)
 If the OpenGL context is a widget this function sets the mouse position. More...

void setPosition (int x, int y)
 If the OpenGL context is a widget this function sets its position. More...

vl::ivec2 position () const
 If the OpenGL context is a widget this function returns its position. More...

void setSize (int w, int h)
 The actual size of the OpenGL context, i.e. More...

vl::ivec2 size () const
 The actual size of the OpenGL context, i.e. the client area if this is a window. More...

void setWindowSize (int w, int h)
 Sets the size of the window. Note that if this Win32Window has window decorations the actual OpenGL context will be smaller than the given w and h parameters. More...

vl::ivec2 windowSize () const
 Returns the size of the window and not the client area. More...

bool setFullscreen (bool fullscreen_on)
 If the OpenGL context is a widget this function requests a maximization to fullscreen. More...

void quitApplication ()
 Calls the PostQuitMessage(0) function (Win32 API). More...

const std::vector< int > & contextAttribs () const
 Context attributes used when creating an OpenGL 3.x / 4.x context. More...

std::vector< int > & contextAttribs ()
 Context attributes used when creating an OpenGL 3.x / 4.x context. More...

void setContextAttribs (const int *attribs, int size)
 Context attributes used when creating an OpenGL 3.x / 4.x context. More...

- Public Member Functions inherited from vl::OpenGLContext
 OpenGLContext (int w=0, int h=0)
 Constructor. More...

 ~OpenGLContext ()
 Destructor. More...

bool initGLContext (bool log=true)
 Initializes the supported OpenGL extensions. More...

void logOpenGLInfo ()
 Logs some information about the OpenGL context. More...

const std::string & extensions () const
 Returns the list of OpenGL extensions supported separated by '|' characters. More...

bool isExtensionSupported (const char *ext_name)
 Returns true if the given extension is supported. More...

void * getProcAddress (const char *function_name)
 Returns the address of an OpenGL extension function. More...

FramebufferObjectleftFramebuffer ()
 The render target representing the default left framebuffer. More...

const FramebufferObjectleftFramebuffer () const
 The render target representing the default left framebuffer. More...

FramebufferObjectrightFramebuffer ()
 The render target representing the default right framebuffer (if a stereo OpenGL context is present). More...

const FramebufferObjectrightFramebuffer () const
 The render target representing the default right framebuffer (if a stereo OpenGL context is present). More...

FramebufferObjectframebuffer ()
 The default render target (always returns leftFramebuffer()). More...

const FramebufferObjectframebuffer () const
 The default render target (always returns leftFramebuffer()). More...

FramebufferObjectcreateFramebufferObject ()
 Equivalent to "createFramebufferObject(0,0);". More...

FramebufferObjectcreateFramebufferObject (int width, int height, EReadDrawBuffer draw_buffer=RDB_COLOR_ATTACHMENT0, EReadDrawBuffer read_buffer=RDB_COLOR_ATTACHMENT0)
 Creates a new FramebufferObject (framebuffer object FramebufferObject). More...

void destroyFramebufferObject (FramebufferObject *fbort)
 Destroys the specified FramebufferObject. More...

void destroyAllFramebufferObjects ()
 Removes all FramebufferObjects belonging to an OpenGLContext. More...

void destroyAllOpenGLResources ()
 Removes all OpenGL resources handled by the OpenGLContext. More...

virtual bool fullscreen () const
 If the OpenGL context is a widget this function returns whether it has been maximized to fullscreen. More...

int width () const
 Returns the width in pixels of an OpenGLContext. More...

int height () const
 Returns the height in pixels of an OpenGLContext. More...

virtual bool mouseVisible () const
 If the OpenGL context is a widget this function returns whether the mouse is visible over it or not. More...

void setVSyncEnabled (bool enable)
 If the OpenGL context is a widget this function enabled/disables double buffer swapping to the monitor's vertical synch. More...

bool vsyncEnabled () const
 If the OpenGL context is a widget this function returns whether vsync is enabled or not. More...

virtual void setContinuousUpdate (bool continuous)
 If the OpenGL context is a widget this function sets whether its area is continuously updated at each frame. More...

bool continuousUpdate () const
 If the OpenGL context is a widget this function returns whether its area is continuously updated at each frame. More...

void addEventListener (UIEventListener *el)
 Adds an UIEventListener to be notified of OpenGLContext related events. More...

void removeEventListener (UIEventListener *el)
 Removes an UIEventListener. More...

void eraseAllEventListeners ()
 Removes all UIEventListener previously registered. More...

const std::vector< ref< UIEventListener > > & eventListeners () const
 The currently UIEventListener registered to be notified of OpenGLContext related events. More...

const UIEventListenereventListener (int i) const
 Returns the i-th UIEventListener registered to an OpenGLContext. More...

UIEventListenereventListener (int i)
 Returns the i-th UIEventListener registered to an OpenGLContext. More...

int eventListenerCount () const
 Returns the number of UIEventListener registered to an OpenGLContext. More...

const OpenGLContextFormatopenglContextInfo () const
 Returns an OpenGLContextFormat structure describing an OpenGLContext. More...

void setOpenGLContextInfo (const OpenGLContextFormat &info)
 Sets the OpenGLContextFormat associated to an OpenGLContext. More...

void ignoreNextMouseMoveEvent ()
 Requests not to dispatch the next mouse move event. More...

void dispatchResizeEvent (int w, int h)
 Dispatches the UIEventListener::resizeEvent() notification to the subscribed UIEventListener objects. More...

void dispatchMouseMoveEvent (int x, int y)
 Dispatches the UIEventListener::mouseMoveEvent() notification to the subscribed UIEventListener objects. More...

void dispatchMouseUpEvent (EMouseButton button, int x, int y)
 Dispatches the UIEventListener::mouseUpEvent() notification to the subscribed UIEventListener objects. More...

void dispatchMouseDownEvent (EMouseButton button, int x, int y)
 Dispatches the UIEventListener::mouseDownEvent() notification to the subscribed UIEventListener objects. More...

void dispatchMouseWheelEvent (int n)
 Dispatches the UIEventListener::mouseWheelEvent() notification to the subscribed UIEventListener objects. More...

void dispatchKeyPressEvent (unsigned short unicode_ch, EKey key)
 Dispatches the UIEventListener::keyPressEvent() notification to the subscribed UIEventListener objects. More...

void dispatchKeyReleaseEvent (unsigned short unicode_ch, EKey key)
 Dispatches the UIEventListener::keyReleaseEvent() notification to the subscribed UIEventListener objects. More...

void dispatchDestroyEvent ()
 Dispatches the UIEventListener::destroyEvent() notification to the subscribed UIEventListener(s), calls destroyAllOpenGLResources() and eraseAllEventListeners() This event must be issued just before the actual GL context is destroyed. More...

void dispatchUpdateEvent ()
 Dispatches the UIEventListener::updateEvent() notification to the subscribed UIEventListener objects. More...

void dispatchVisibilityEvent (bool visible)
 Dispatches the UIEventListener::visibilityEvent() notification to the subscribed UIEventListener objects. More...

void dispatchInitEvent ()
 Dispatches the UIEventListener::initEvent() notification to the subscribed UIEventListener objects. More...

void dispatchFileDroppedEvent (const std::vector< String > &files)
 Dispatches the UIEventListener::fileDroppedEvent() notification to the subscribed UIEventListener objects. More...

const std::set< EKey > & keyboard () const
 Returns the std::set containing the currently pressed keys. More...

bool isKeyPressed (EKey key) const
 Returns true if the given key is pressed. More...

void keyPress (EKey key)
 Inserts the specified key in the set of currently active keys - For internal use only. More...

void keyRelease (EKey key)
 Removes the specified key from the set of currently active keys - For internal use only. More...

bool isInitialized () const
 Returns true if the OpenGLContext is in an initialized state. More...

int vertexAttribCount () const
 The number (clamped to VA_MaxAttribCount) of generic vertex attributes as returned by glGet(GL_MAX_VERTEX_ATTRIBS) More...

int textureImageUnitCount () const
 The number (clamped to VL_MAX_TEXTURE_IMAGE_UNITS) of texture image units supported by the current hardware. More...

int textureCoordCount () const
 The number (clamped to VL_MAX_LEGACY_TEXTURE_UNITS) of fixed function pipeline texture units supported by the current hardware. More...

bool hasDoubleBuffer () const
 Returns true if an OpenGLContext supports double buffering. More...

void useGLSLProgram (const GLSLProgram *glsl)
 Activates the given GLSLProgram or unbinds the current one if glsl is NULL. More...

void bindVAS (const IVertexAttribSet *vas, bool use_vbo, bool force)
 Activates the specified vertex attribute set - For internal use only. More...

void bindVAS_Attribs (const IVertexAttribSet *vas, bool use_vbo)

void bindVAS_Fixed (const IVertexAttribSet *vas, bool use_vbo)

void bindVAS_Reset ()

void applyEnables (const EnableSet *cur)
 Applies an EnableSet to an OpenGLContext - Typically for internal use only. More...

void applyRenderStates (const RenderStateSet *cur, const Camera *camera)
 Applies a RenderStateSet to an OpenGLContext - Typically for internal use only. More...

void resetEnables ()
 Resets all the interanal enable-tables - For internal use only. More...

void resetRenderStates ()
 Resets all the interanal render-states-tables - For internal use only. More...

void setDefaultRenderState (const RenderStateSlot &rs_slot)
 Defines the default render state slot to be used by the opengl context. More...

const RenderStateSlotdefaultRenderState (ERenderState rs)
 Returns the default render state slot used by VL when a specific render state type is left undefined. More...

void resetContextStates (EResetContextStates start_or_finish)
 Resets the OpenGL states necessary to begin and finish a rendering. - For internal use only. More...

void setTexUnitBinding (int unit_i, ETextureDimension target)
 Declares that texture unit unit_i is currently bound to the specified texture target. - For internal use only. More...

ETextureDimension texUnitBinding (int unit_i) const
 Returnes the texture target currently active for the specified texture unit. - For internal use only. More...

const GLSLProgramglslProgram () const

GLSLProgramglslProgram ()

bool isCleanState (bool verbose)
 Checks whether the OpenGL state is clean or not. More...

const fvec3normal () const

const fvec4color () const

const fvec3secondaryColor () const

const fvec4vertexAttribValue (int i) const

- Public Member Functions inherited from vl::Object
 Object ()
 Constructor. More...

 Object (const Object &other)
 Copy constructor: copies the name, ref count mutex and user data. More...

Objectoperator= (const Object &other)
 Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string & objectName () const
 The name of the object, by default set to the object's class name. More...

void setObjectName (const char *name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setObjectName (const std::string &name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setRefCountMutex (IMutex *mutex)
 The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutexrefCountMutex ()
 The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutexrefCountMutex () const
 The mutex used to protect the reference counting of an Object across multiple threads. More...

int referenceCount () const
 Returns the number of references of an object. More...

void incReference () const
 Increments the reference count of an object. More...

void decReference ()
 Decrements the reference count of an object and deletes it if both automaticDelete() is true the count reaches 0. More...

void setAutomaticDelete (bool autodel_on)
 If set to true the Object is deleted when its reference count reaches 0. More...

bool automaticDelete () const
 If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T * as ()
 Casts an Object to the specified class. More...

template<class T >
const T * as () const
 Casts an Object to the specified class. More...


Protected Member Functions

bool initWin32GLContext (HGLRC share_context, const vl::String &title, const vl::OpenGLContextFormat &fmt, int x, int y, int width, int height)

- Protected Member Functions inherited from vl::Object
virtual ~Object ()


Protected Attributes

std::vector< int > mContextAttribs

HDC mHDC

HGLRC mHGLRC

vl::ivec2 mNormPosit

vl::ivec2 mNormSize

unsigned int mNormFlags

- Protected Attributes inherited from vl::OpenGLContext
ref< FramebufferObjectmLeftFramebuffer

ref< FramebufferObjectmRightFramebuffer

std::vector< ref< FramebufferObject > > mFramebufferObject

std::vector< ref< UIEventListener > > mEventListeners

std::set< EKeymKeyboard

OpenGLContextFormat mGLContextInfo

int mVertexAttribCount

int mTextureImageUnitCount

int mTextureCoordCount

bool mMouseVisible

bool mContinuousUpdate

bool mIgnoreNextMouseMoveEvent

bool mFullscreen

bool mHasDoubleBuffer

bool mIsInitialized

std::string mExtensions

RenderStateSlot mDefaultRenderStates [RS_RenderStateCount]

ref< NaryQuickMap< EEnable, EEnable, EN_EnableCount > > mCurrentEnableSet

ref< NaryQuickMap< EEnable, EEnable, EN_EnableCount > > mNewEnableSet

ref< NaryQuickMap< ERenderState, RenderStateSlot, RS_RenderStateCount > > mCurrentRenderStateSet

ref< NaryQuickMap< ERenderState, RenderStateSlot, RS_RenderStateCount > > mNewRenderStateSet

ETextureDimension mTexUnitBinding [VL_MAX_TEXTURE_IMAGE_UNITS]

ref< GLSLProgrammGLSLProgram

bool mGLSLUpdated

const IVertexAttribSetmCurVAS

VertexArrayInfo mVertexArray

VertexArrayInfo mNormalArray

VertexArrayInfo mColorArray

VertexArrayInfo mSecondaryColorArray

VertexArrayInfo mFogArray

VertexArrayInfo mTexCoordArray [VA_MaxTexCoordCount]

VertexArrayInfo mVertexAttrib [VA_MaxAttribCount]

fvec3 mNormal

fvec4 mColor

fvec3 mSecondaryColor

fvec4 mVertexAttribValue [VA_MaxAttribCount]

GLuint mDefaultVAO

- Protected Attributes inherited from vl::Object
std::string mObjectName

IMutexmRefCountMutex

int mReferenceCount

bool mAutomaticDelete


Additional Inherited Members

- Static Public Member Functions inherited from vl::OpenGLContext
static bool areUniformsColliding (const UniformSet *u1, const UniformSet *u2)
 Returns true if the two UniformSet contain at least one Uniform variable with the same name. More...


Detailed Description

The Win32Context class implements an OpenGLContext using the Win32 API.

Definition at line 46 of file Win32Context.hpp.

Constructor & Destructor Documentation

◆ Win32Context() [1/2]

vlWin32::Win32Context::Win32Context ( )
inline

Definition at line 49 of file Win32Context.hpp.

◆ Win32Context() [2/2]

vlWin32::Win32Context::Win32Context ( int  w,
int  h
)
inline

Definition at line 51 of file Win32Context.hpp.

◆ ~Win32Context()

Win32Context::~Win32Context ( )

Definition at line 40 of file Win32Context.cpp.

Member Function Documentation

◆ contextAttribs() [1/2]

const std::vector<int>& vlWin32::Win32Context::contextAttribs ( ) const
inline

Context attributes used when creating an OpenGL 3.x / 4.x context.

The flags must be the ones specified by http://www.opengl.org/registry/specs/ARB/wgl_create_context.txt

Definition at line 111 of file Win32Context.hpp.

◆ contextAttribs() [2/2]

std::vector<int>& vlWin32::Win32Context::contextAttribs ( )
inline

Context attributes used when creating an OpenGL 3.x / 4.x context.

The flags must be the ones specified by http://www.opengl.org/registry/specs/ARB/wgl_create_context.txt

Definition at line 115 of file Win32Context.hpp.

◆ getFocus()

void Win32Context::getFocus ( )
virtual

If the OpenGL context is a widget this function requests the mouse focus on it.

Reimplemented from vl::OpenGLContext.

Definition at line 146 of file Win32Context.cpp.

◆ hdc()

HDC vlWin32::Win32Context::hdc ( ) const
inline

Definition at line 57 of file Win32Context.hpp.

Referenced by vlWin32::Win32Window::WindowProc().

◆ hglrc()

HGLRC vlWin32::Win32Context::hglrc ( ) const
inline

◆ hide()

void Win32Context::hide ( )
virtual

If the OpenGL context is a widget this function makes it invisible to the user.

Reimplemented from vl::OpenGLContext.

Definition at line 140 of file Win32Context.cpp.

◆ hwnd()

virtual HWND vlWin32::Win32Context::hwnd ( ) const
pure virtual

◆ initWin32GLContext()

bool Win32Context::initWin32GLContext ( HGLRC  share_context,
const vl::String title,
const vl::OpenGLContextFormat fmt,
int  x,
int  y,
int  width,
int  height
)
protected

◆ makeCurrent()

void Win32Context::makeCurrent ( )
virtual

Sets the OpenGL context as current for the calling thread.

Implements vl::OpenGLContext.

Definition at line 50 of file Win32Context.cpp.

◆ position()

vl::ivec2 Win32Context::position ( ) const
virtual

If the OpenGL context is a widget this function returns its position.

Reimplemented from vl::OpenGLContext.

Definition at line 103 of file Win32Context.cpp.

◆ quitApplication()

void Win32Context::quitApplication ( )
virtual

Calls the PostQuitMessage(0) function (Win32 API).

Reimplemented from vl::OpenGLContext.

Definition at line 62 of file Win32Context.cpp.

◆ setContextAttribs()

void Win32Context::setContextAttribs ( const int *  attribs,
int  size
)

Context attributes used when creating an OpenGL 3.x / 4.x context.

The flags must be the ones specified by http://www.opengl.org/registry/specs/ARB/wgl_create_context.txt

Definition at line 374 of file Win32Context.cpp.

References vlWin32::gWin32WindowClassName, and vlWin32::registerClass().

◆ setFullscreen()

bool Win32Context::setFullscreen ( bool  )
virtual

If the OpenGL context is a widget this function requests a maximization to fullscreen.

Reimplemented from vl::OpenGLContext.

Definition at line 168 of file Win32Context.cpp.

References NULL.

◆ setMousePosition()

void Win32Context::setMousePosition ( int  ,
int
)
virtual

If the OpenGL context is a widget this function sets the mouse position.

Reimplemented from vl::OpenGLContext.

Definition at line 152 of file Win32Context.cpp.

◆ setMouseVisible()

void Win32Context::setMouseVisible ( bool  )
virtual

If the OpenGL context is a widget this function sets whether the mouse is visible over it or not.

Reimplemented from vl::OpenGLContext.

Definition at line 67 of file Win32Context.cpp.

◆ setPosition()

void Win32Context::setPosition ( int  ,
int
)
virtual

If the OpenGL context is a widget this function sets its position.

Reimplemented from vl::OpenGLContext.

Definition at line 76 of file Win32Context.cpp.

◆ setSize()

void Win32Context::setSize ( int  w,
int  h
)
virtual

The actual size of the OpenGL context, i.e.

the client area if this is a window. Note that if this Win32Window has window decorations the actual window size will be bigger than the given w and h parameters.

Reimplemented from vl::OpenGLContext.

Definition at line 82 of file Win32Context.cpp.

◆ setWindowSize()

void Win32Context::setWindowSize ( int  w,
int  h
)

Sets the size of the window. Note that if this Win32Window has window decorations the actual OpenGL context will be smaller than the given w and h parameters.

Definition at line 95 of file Win32Context.cpp.

◆ setWindowTitle()

void Win32Context::setWindowTitle ( const vl::String )
virtual

If the OpenGL context is a top window this function sets its title.

Reimplemented from vl::OpenGLContext.

Definition at line 128 of file Win32Context.cpp.

References vl::String::ptr().

◆ shareOpenGLResources()

void Win32Context::shareOpenGLResources ( HGLRC  hGLRC)

Use this function when you want two OpenGL contexts to share their resources (display lists, textures, shader objects, buffer objects etc.) Equivalent to wglShareLists(this->hglrc(), hGLRC)

Remarks
If you want to share resources among two or more OpenGL contexts, you must call this function before you start creating any resources.

Definition at line 44 of file Win32Context.cpp.

◆ show()

void Win32Context::show ( )
virtual

If the OpenGL context is a widget this function makes it visible to the user.

Reimplemented from vl::OpenGLContext.

Definition at line 134 of file Win32Context.cpp.

◆ size()

vl::ivec2 Win32Context::size ( ) const

The actual size of the OpenGL context, i.e. the client area if this is a window.

Definition at line 119 of file Win32Context.cpp.

◆ swapBuffers()

void Win32Context::swapBuffers ( )
virtual

Swaps the back and front buffers to present the last rendering.

Implements vl::OpenGLContext.

Definition at line 162 of file Win32Context.cpp.

◆ update()

void Win32Context::update ( )
virtual

If the OpenGLContext is a widget this function requests a redraw and generates an updateEvent().

Implements vl::OpenGLContext.

Definition at line 56 of file Win32Context.cpp.

Referenced by vlWin32::dispatchUpdate().

◆ windowSize()

vl::ivec2 Win32Context::windowSize ( ) const

Returns the size of the window and not the client area.

Use the size() method if you need the size of the actual OpenGL rendering context.

Note
windowSize() can be different from size() because of the space taken by the window caption and decorations.

Definition at line 111 of file Win32Context.cpp.

Member Data Documentation

◆ mContextAttribs

std::vector<int> vlWin32::Win32Context::mContextAttribs
protected

Definition at line 125 of file Win32Context.hpp.

◆ mHDC

HDC vlWin32::Win32Context::mHDC
protected

Definition at line 127 of file Win32Context.hpp.

Referenced by initWin32GLContext().

◆ mHGLRC

HGLRC vlWin32::Win32Context::mHGLRC
protected

Definition at line 128 of file Win32Context.hpp.

Referenced by initWin32GLContext().

◆ mNormFlags

unsigned int vlWin32::Win32Context::mNormFlags
protected

Definition at line 132 of file Win32Context.hpp.

◆ mNormPosit

vl::ivec2 vlWin32::Win32Context::mNormPosit
protected

Definition at line 130 of file Win32Context.hpp.

◆ mNormSize

vl::ivec2 vlWin32::Win32Context::mNormSize
protected

Definition at line 131 of file Win32Context.hpp.


The documentation for this class was generated from the following files:
