Public Member Functions | List of all members
vl::InterpolatorDVec2 Class Referenceabstract

Abstract class that interpolates vl::dvec2 values. More...

#include <Interpolator.hpp>

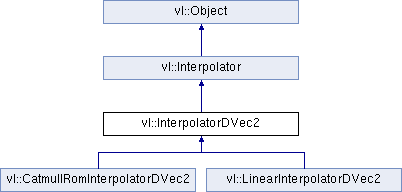

+ Inheritance diagram for vl::InterpolatorDVec2:

Public Member Functions

virtual vl::dvec2 computePoint (float t) const =0
 Samples the interpolator at the given point. More...

- Public Member Functions inherited from vl::Interpolator
 Interpolator ()

- Public Member Functions inherited from vl::Object
 Object ()
 Constructor. More...

 Object (const Object &other)
 Copy constructor: copies the name, ref count mutex and user data. More...

Objectoperator= (const Object &other)
 Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string & objectName () const
 The name of the object, by default set to the object's class name. More...

void setObjectName (const char *name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setObjectName (const std::string &name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setRefCountMutex (IMutex *mutex)
 The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutexrefCountMutex ()
 The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutexrefCountMutex () const
 The mutex used to protect the reference counting of an Object across multiple threads. More...

int referenceCount () const
 Returns the number of references of an object. More...

void incReference () const
 Increments the reference count of an object. More...

void decReference ()
 Decrements the reference count of an object and deletes it if both automaticDelete() is true the count reaches 0. More...

void setAutomaticDelete (bool autodel_on)
 If set to true the Object is deleted when its reference count reaches 0. More...

bool automaticDelete () const
 If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T * as ()
 Casts an Object to the specified class. More...

template<class T >
const T * as () const
 Casts an Object to the specified class. More...


Additional Inherited Members

- Protected Member Functions inherited from vl::Object
virtual ~Object ()

- Protected Attributes inherited from vl::Object
std::string mObjectName

IMutexmRefCountMutex

int mReferenceCount

bool mAutomaticDelete


Detailed Description

Abstract class that interpolates vl::dvec2 values.

Definition at line 110 of file Interpolator.hpp.

Member Function Documentation

◆ computePoint()

virtual vl::dvec2 vl::InterpolatorDVec2::computePoint ( float  t) const
pure virtual

Samples the interpolator at the given point.

Implemented in vl::CatmullRomInterpolatorDVec2, and vl::LinearInterpolatorDVec2.


The documentation for this class was generated from the following file:
