vl::DrawRangeElementsBase Class Reference

Base interface for all DrawRangeElements* sub classes. More...

#include <DrawRangeElements.hpp>

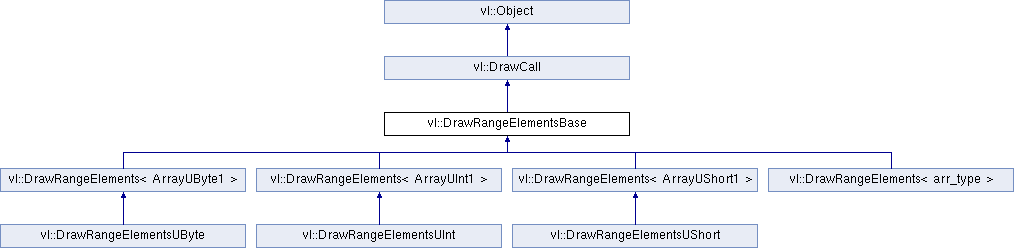

+ Inheritance diagram for vl::DrawRangeElementsBase:

Public Member Functions

void setRangeStart (int rstart)
 Sets the range start. More...

int rangeStart () const
 Returns the range start. More...

void setRangeEnd (int rend)
 Sets the range end. More...

int rangeEnd () const
 Returns the range end. More...

virtual bool primitiveRestartEnabled () const
 Returns whether the primitive-restart functionality is enabled or not. More...

void setPrimitiveRestartEnabled (bool enabled)
 Enables the primitive-restart functionality. More...

void setBaseVertex (int base_vertex)
 If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts. More...

int baseVertex () const
 Returns the currently used base vertex. More...

- Public Member Functions inherited from vl::DrawCall
 DrawCall ()
 Constructor. More...

DrawCalloperator= (const DrawCall &other)
 Assignment operator. More...

void setPrimitiveType (EPrimitiveType type)
 Sets the draw call's primitive type. More...

EPrimitiveType primitiveType () const
 Returns the draw call's primitive type. More...

virtual void render (bool use_bo=true) const =0
 Executes the draw call. More...

virtual ref< DrawCallclone () const =0
 Returns a clone of the draw call. More...

virtual void updateDirtyBufferObject (EBufferObjectUpdateMode)=0
 Updates the index buffer's BufferObject if marked as dirty. More...

virtual void deleteBufferObject ()=0
 Deletes the index buffer's BufferObject. More...

void setEnabled (bool enable)
 Enables/disables the draw call. More...

bool isEnabled () const
 True if the draw call is enabled. More...

virtual TriangleIterator triangleIterator () const =0
 Returns a TriangleIterator used to iterate through the triangles of a DrawCall. More...

virtual IndexIterator indexIterator () const =0
 Returns a IndexIterator used to iterate through the virtual indices of a DrawCall. More...

u32 countIndices () const
 Counts the number of virtual indices of a DrawCall., i.e. More...

u32 countTriangles () const
 Counts the number of virtual triangles of a DrawCall., i.e. More...

virtual int instances () const
 Returns the number of instances for this set of primitives. More...

virtual unsigned int primitiveRestartIndex ()
 Returns the primitive restart index used by the draw call or 0 if primitive restart is not supported. More...

void setPatchParameter (PatchParameter *patch_param)
 Attach a PatchParameter to a DrawCall to be used when using primitive-type PT_PATCHES. More...

PatchParameterpatchParameter ()
 The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

const PatchParameterpatchParameter () const
 The PatchParameter attached to a DrawCall to be used when using primitive-type PT_PATCHES. More...

- Public Member Functions inherited from vl::Object
 Object ()
 Constructor. More...

 Object (const Object &other)
 Copy constructor: copies the name, ref count mutex and user data. More...

Objectoperator= (const Object &other)
 Copy operator: copies the object's name, ref count mutex and user data. More...

const std::string & objectName () const
 The name of the object, by default set to the object's class name. More...

void setObjectName (const char *name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setObjectName (const std::string &name)
 The name of the object, by default set to the object's class name in debug builds. More...

void setRefCountMutex (IMutex *mutex)
 The mutex used to protect the reference counting of an Object across multiple threads. More...

IMutexrefCountMutex ()
 The mutex used to protect the reference counting of an Object across multiple threads. More...

const IMutexrefCountMutex () const
 The mutex used to protect the reference counting of an Object across multiple threads. More...

int referenceCount () const
 Returns the number of references of an object. More...

void incReference () const
 Increments the reference count of an object. More...

void decReference ()
 Decrements the reference count of an object and deletes it if both automaticDelete() is true the count reaches 0. More...

void setAutomaticDelete (bool autodel_on)
 If set to true the Object is deleted when its reference count reaches 0. More...

bool automaticDelete () const
 If set to true the Object is deleted when its reference count reaches 0. More...

template<class T >
T * as ()
 Casts an Object to the specified class. More...

template<class T >
const T * as () const
 Casts an Object to the specified class. More...


Protected Attributes

int mRangeStart

int mRangeEnd

GLuint mBaseVertex

bool mPrimitiveRestartEnabled

- Protected Attributes inherited from vl::DrawCall
ref< PatchParametermPatchParameter

EPrimitiveType mType

bool mEnabled

- Protected Attributes inherited from vl::Object
std::string mObjectName

IMutexmRefCountMutex

int mReferenceCount

bool mAutomaticDelete


Additional Inherited Members

- Protected Member Functions inherited from vl::DrawCall
void applyPatchParameters () const

- Protected Member Functions inherited from vl::Object
virtual ~Object ()


Detailed Description

Base interface for all DrawRangeElements* sub classes.

Implements the index-type-independent interface of the class. That is you can cast to DrawRangeElementsBase* and access its members without needing to know whether the actual class is a vl::DrawRangeElementsUInt, vl::DrawRangeElementsUShort or vl::DrawRangeElementsUByte.

Definition at line 53 of file DrawRangeElements.hpp.

Member Function Documentation

◆ baseVertex()

int vl::DrawRangeElementsBase::baseVertex ( ) const
inline

Returns the currently used base vertex.

For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 84 of file DrawRangeElements.hpp.

References mBaseVertex.

Referenced by vl::Geometry::shrinkDrawCalls(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().

◆ primitiveRestartEnabled()

virtual bool vl::DrawRangeElementsBase::primitiveRestartEnabled ( ) const
inlinevirtual

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented from vl::DrawCall.

Definition at line 71 of file DrawRangeElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vl::DrawRangeElements< ArrayUShort1 >::render(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().

◆ rangeEnd()

int vl::DrawRangeElementsBase::rangeEnd ( ) const
inline

Returns the range end.

See also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElements.xml

Definition at line 68 of file DrawRangeElements.hpp.

References mRangeEnd.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ rangeStart()

int vl::DrawRangeElementsBase::rangeStart ( ) const
inline

Returns the range start.

See also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElements.xml

Definition at line 62 of file DrawRangeElements.hpp.

References mRangeStart.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setBaseVertex()

void vl::DrawRangeElementsBase::setBaseVertex ( int  base_vertex)
inline

If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts.

Note that using base_vertx != requires OpenGL 3.2 or higher or ARB_draw_elements_base_vertex. For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 80 of file DrawRangeElements.hpp.

References mBaseVertex.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setPrimitiveRestartEnabled()

void vl::DrawRangeElementsBase::setPrimitiveRestartEnabled ( bool  enabled)
inline

Enables the primitive-restart functionality.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Definition at line 74 of file DrawRangeElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setRangeEnd()

void vl::DrawRangeElementsBase::setRangeEnd ( int  rend)
inline

Sets the range end.

See also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElements.xml

Definition at line 65 of file DrawRangeElements.hpp.

References mRangeEnd.

Referenced by vl::Geometry::shrinkDrawCalls().

◆ setRangeStart()

void vl::DrawRangeElementsBase::setRangeStart ( int  rstart)
inline

Sets the range start.

See also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElements.xml

Definition at line 59 of file DrawRangeElements.hpp.

References mRangeStart.

Referenced by vl::Geometry::shrinkDrawCalls().

Member Data Documentation

◆ mBaseVertex

GLuint vl::DrawRangeElementsBase::mBaseVertex
protected

◆ mPrimitiveRestartEnabled

bool vl::DrawRangeElementsBase::mPrimitiveRestartEnabled
protected

◆ mRangeEnd

int vl::DrawRangeElementsBase::mRangeEnd
protected

◆ mRangeStart

int vl::DrawRangeElementsBase::mRangeStart
protected

The documentation for this class was generated from the following file:
