Public Member Functions | Protected Attributes

vl::Atom Class Reference

The Atom class represents an atom to be used with the Molecule class. More...

#include <Atom.hpp>

Inheritance diagram for vl::Atom:
vl::Object

List of all members.

Public Member Functions

 Atom ()
 Atom (const Atom &other)
Atomoperator= (const Atom &other)
 Assignment operator: does not assign the adjacent atoms.
bool isAtomAdjacent (Atom *atom) const
const std::vector< Atom * > & adjacentAtoms () const
std::vector< Atom * > & adjacentAtoms ()
EAtomType atomType () const
void setAtomType (EAtomType type)
unsigned int id () const
void setId (unsigned int id)
const fvec3coordinates () const
void setCoordinates (const fvec3 &coordinates)
float radius () const
void setRadius (float radius)
void setVisited (bool visited)
bool visited () const
void setAtomName (const std::string &name)
const std::string & atomName () const
const fvec4color () const
void setColor (const fvec4 &color)
bool visible () const
void setVisible (bool visible)
void setShowAtomName (bool show)
 Defines whether the atom name should be rendered or not. See also Molecule::setShowAtomNames().
bool showAtomName () const
 Defines whether the atom name should be rendered or not. See also Molecule::setShowAtomNames().

Protected Attributes

fvec4 mColor
fvec3 mCoordinates
EAtomType mAtomType
float mRadius
std::vector< Atom * > mAdjacentAtoms
std::string mAtomName
unsigned int mId
bool mVisited
bool mVisible
bool mShowAtomName

Detailed Description

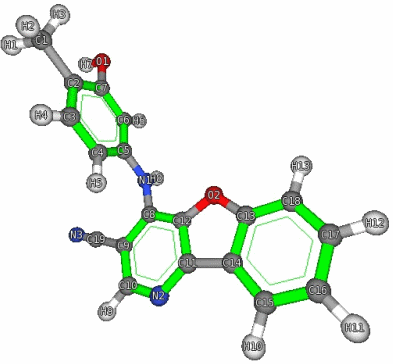

The Atom class represents an atom to be used with the Molecule class.

See also:

Definition at line 51 of file Atom.hpp.


Constructor & Destructor Documentation

vl::Atom::Atom (  ) [inline]
vl::Atom::Atom ( const Atom other ) [inline]

Definition at line 70 of file Atom.hpp.


Member Function Documentation

Atom& vl::Atom::operator= ( const Atom other ) [inline]

Assignment operator: does not assign the adjacent atoms.

Definition at line 73 of file Atom.hpp.

References mAtomName, mAtomType, mColor, mCoordinates, mId, mRadius, mShowAtomName, and mVisible.

bool vl::Atom::isAtomAdjacent ( Atom atom ) const [inline]

Definition at line 89 of file Atom.hpp.

References adjacentAtoms().

Referenced by vl::RingExtractor::sortCycles().

const std::vector< Atom* >& vl::Atom::adjacentAtoms (  ) const [inline]
std::vector< Atom* >& vl::Atom::adjacentAtoms (  ) [inline]

Definition at line 98 of file Atom.hpp.

References mAdjacentAtoms.

EAtomType vl::Atom::atomType (  ) const [inline]

Definition at line 100 of file Atom.hpp.

References mAtomType.

Referenced by vl::Molecule::setAtomTypeVisible().

void vl::Atom::setAtomType ( EAtomType  type ) [inline]

Definition at line 101 of file Atom.hpp.

References mAtomType.

unsigned int vl::Atom::id (  ) const [inline]

Definition at line 103 of file Atom.hpp.

References mId.

Referenced by setId().

void vl::Atom::setId ( unsigned int  id ) [inline]

Definition at line 104 of file Atom.hpp.

References id(), and mId.

const fvec3& vl::Atom::coordinates (  ) const [inline]
void vl::Atom::setCoordinates ( const fvec3 coordinates ) [inline]

Definition at line 107 of file Atom.hpp.

References coordinates(), and mCoordinates.

float vl::Atom::radius (  ) const [inline]

Definition at line 109 of file Atom.hpp.

References mRadius.

Referenced by setRadius().

void vl::Atom::setRadius ( float  radius ) [inline]

Definition at line 110 of file Atom.hpp.

References mRadius, and radius().

void vl::Atom::setVisited ( bool  visited ) [inline]

Definition at line 112 of file Atom.hpp.

References mVisited, and visited().

Referenced by vl::RingExtractor::bootstrap(), and vl::RingExtractor::depthFirstVisit().

bool vl::Atom::visited (  ) const [inline]

Definition at line 113 of file Atom.hpp.

References mVisited.

Referenced by vl::RingExtractor::depthFirstVisit(), and setVisited().

void vl::Atom::setAtomName ( const std::string &  name ) [inline]

Definition at line 115 of file Atom.hpp.

References mAtomName.

const std::string& vl::Atom::atomName (  ) const [inline]

Definition at line 116 of file Atom.hpp.

References mAtomName.

Referenced by vl::Molecule::generateAtomLabel().

const fvec4& vl::Atom::color (  ) const [inline]
void vl::Atom::setColor ( const fvec4 color ) [inline]

Definition at line 119 of file Atom.hpp.

References color(), and mColor.

bool vl::Atom::visible (  ) const [inline]

Definition at line 121 of file Atom.hpp.

References mVisible.

Referenced by vl::Molecule::generateAtomLabel(), setVisible(), and vl::Molecule::wireframeStyle().

void vl::Atom::setVisible ( bool  visible ) [inline]

Definition at line 122 of file Atom.hpp.

References mVisible, and visible().

Referenced by vl::Molecule::setAtomTypeVisible().

void vl::Atom::setShowAtomName ( bool  show ) [inline]

Defines whether the atom name should be rendered or not. See also Molecule::setShowAtomNames().

Definition at line 125 of file Atom.hpp.

References mShowAtomName.

bool vl::Atom::showAtomName (  ) const [inline]

Defines whether the atom name should be rendered or not. See also Molecule::setShowAtomNames().

Definition at line 127 of file Atom.hpp.

References mShowAtomName.

Referenced by vl::Molecule::generateAtomLabel().


Member Data Documentation

fvec4 vl::Atom::mColor [protected]

Definition at line 130 of file Atom.hpp.

Referenced by Atom(), color(), operator=(), and setColor().

Definition at line 131 of file Atom.hpp.

Referenced by Atom(), coordinates(), operator=(), and setCoordinates().

Definition at line 132 of file Atom.hpp.

Referenced by Atom(), atomType(), operator=(), and setAtomType().

float vl::Atom::mRadius [protected]

Definition at line 133 of file Atom.hpp.

Referenced by Atom(), operator=(), radius(), and setRadius().

std::vector< Atom* > vl::Atom::mAdjacentAtoms [protected]

Definition at line 134 of file Atom.hpp.

Referenced by adjacentAtoms().

std::string vl::Atom::mAtomName [protected]

Definition at line 135 of file Atom.hpp.

Referenced by atomName(), operator=(), and setAtomName().

unsigned int vl::Atom::mId [protected]

Definition at line 136 of file Atom.hpp.

Referenced by Atom(), id(), operator=(), and setId().

bool vl::Atom::mVisited [protected]

Definition at line 138 of file Atom.hpp.

Referenced by Atom(), setVisited(), and visited().

bool vl::Atom::mVisible [protected]

Definition at line 140 of file Atom.hpp.

Referenced by Atom(), operator=(), setVisible(), and visible().

bool vl::Atom::mShowAtomName [protected]

Definition at line 142 of file Atom.hpp.

Referenced by Atom(), operator=(), setShowAtomName(), and showAtomName().


The documentation for this class was generated from the following file:
